100W Solar System 12V 10A Controller and 1000W Inverter with USB for Beginner for RV/Boat

https://www.satisled.com/web/image/product.template/6072/image_1920?unique=9611700
(0 review)

197.32 197.32 USD 197.32

¥ 1,425.60

Not Available For Sale


    This combination does not exist.


    Categories :
    Solar Panel System
    SKU :
    1936275
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Features:

    • Basic component for 12V resident off-grid system. Multiple panels can be wired in series for 24v battery charging.

    • Off grid inverter: faster and more sensitive reaction; Perfect electrical protection function; Aluminum alloy housing, not rust, heat-resisting, cold-resistant as well as anti-corrosion.

    • 10A charge controller :The regulator is only suitable for lead-acid,lithium ions and LiFePO4 battries.

    • Designed for RVs, cabins, homes, boats, back-up and remote power use

    • Solar charging will provide on average 400 Watt Hours (Wh) or 35 Amp hours of charge per day (depends on sunlight availability)

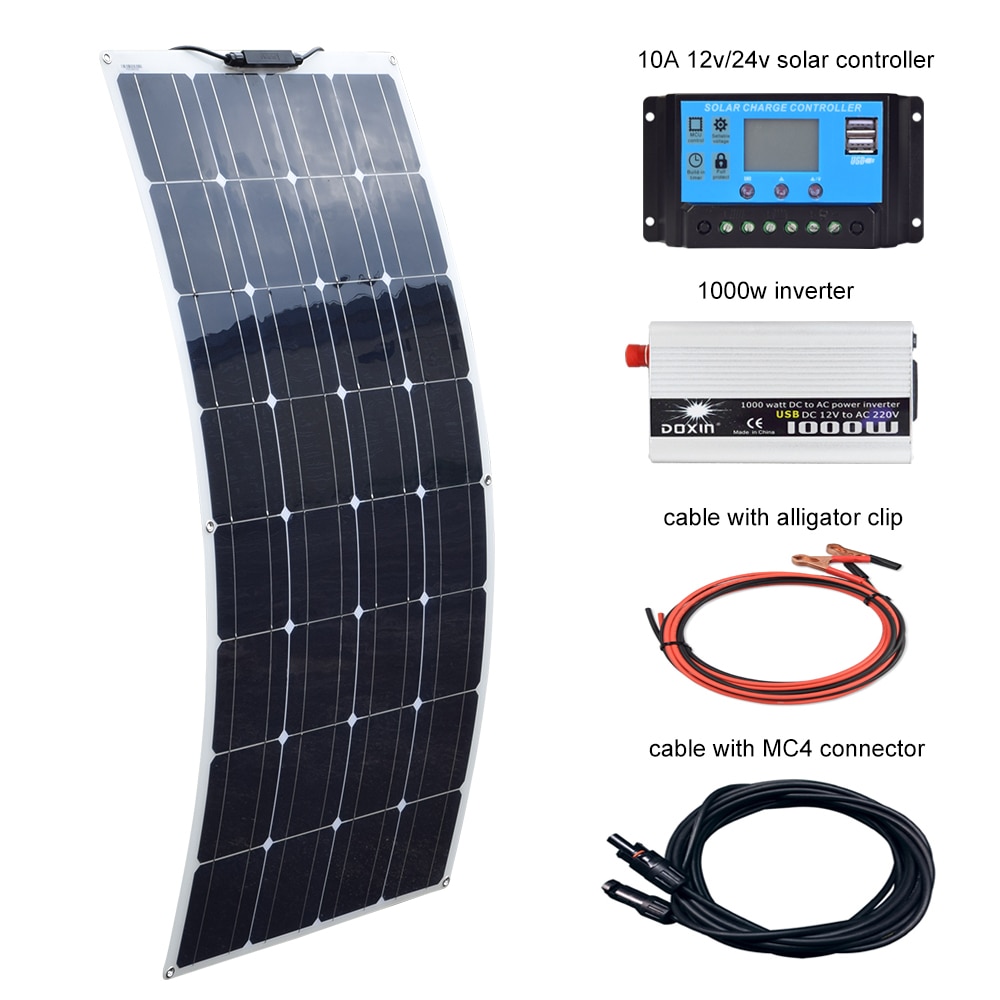

    Package Includes:

    • 1X Solar Panel 100W

    • 1X 10A controller

    • 1X  12V(220V/110V) 1000W Inverter

    • 1X 1 set 3m cable with MC4 connector(2.5mm2)

    • 1X 1 set 3m cable with alligator clip(2.5mm2)

    • 1X Operation Manual

    Parameters:

    Solar panel:

    • Maximum power(Pmax): 100W

    • Output tolerance: + 3%

    • Maximum system voltage: 700V DC

    • Open circuit voltage(Voc): 19.2V

    • Short circuit current(Isc): 6.87A

    • Maximum power voltage(Vmp): 16V

    • Maximum power current(Imp): 6.25A

    • Cell Efficiency: 19.5%

    • Operating Temperature(NOCT): 45±2℃

    • Temperature Range: -20℃~+80℃

    • Number of cells: 32pcs

    • Size: 1050*540*3 mm

    • Standard Test Conditions: lrradiance 1000w/m2, Temperature 25℃,AM=1.5

    Inverter:

    • Power: 1000W

    • Load power: 500W

    • Input voltage: 12V

    • Output voltage 1:12V 110V /220V

    • Output voltage 2: DC 5V-- 2.1A

    • Volume: 167*90*50mm

    Controller:

    • Rated AMP: 10A

    • MAX Input: 50V

    • Battery Type: LEAD-ACID 12V

    • Charging Voltage :13.7V

    • LOW-Voltage Disconnect: 10.7V

    • Low-voltage Reconnect: 12.6V

    • USB Output: 5V 2A

    • Standby Lost:<10mA

    • Working Temp: -35~ 60 ℃

    • Size: 133*70*33mm
