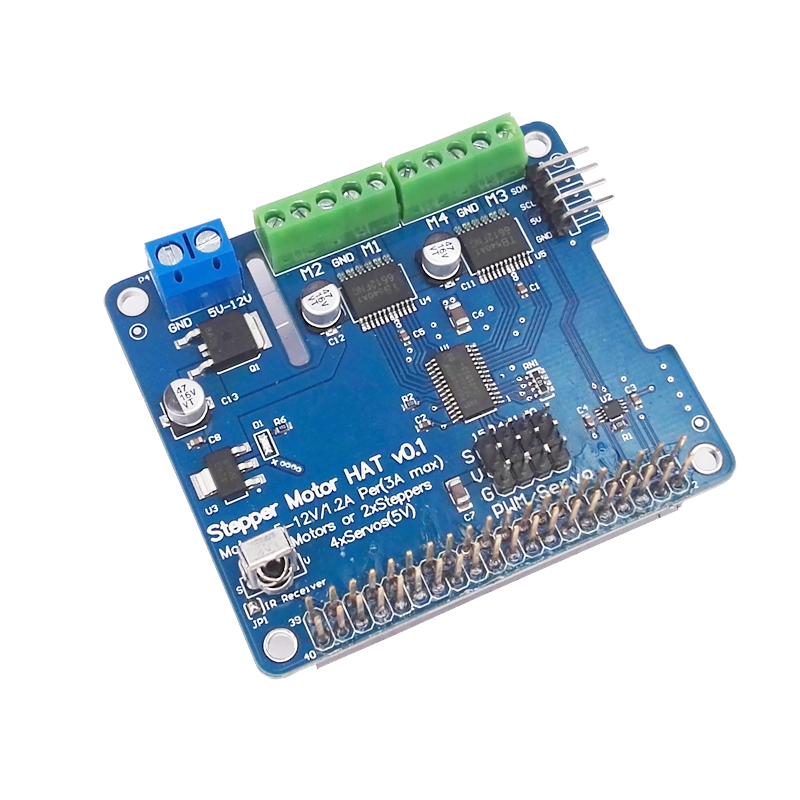

Stepper Motor B + Robot Expansion Board Servo HAT for Raspberry Pi 3

Features:

• Supports 2 road 6V~12V stepping motor

• Supports 4 roads 6V~12V Gear motor

• Supports 16 roads PWM Channel output

• Single power supply for normal supply voltage range of 5v to 12v

• Shares 12 bit resolution and could adjust PWM up to 1.6KHz

• Supports Infrared receiving function for handy Infrared control

• Supports 4 roads Rudder interface,3P standard interface for convenient connection of 5V rudder and LED

• One I2C connector which is compatible with 3.3v/5v and also suitable for other Arduino and expansion boards on market

• 4 H-Bridges:provides 1.2A per bridge (3A peak) with thermal shutdown protection, internal kickback protection diodes. Can run motors on 5VDC to 12VDC.

• Works best with Raspberry Pi model A+, B+, or Pi 2;

Specifications:

• Working voltage: 5v-12v

• Interface: I2C

• Size: 65×56×21mm

• Weight：0.02kg

Package list:

• Stepper Motor HAT for Raspberry Pi x1
