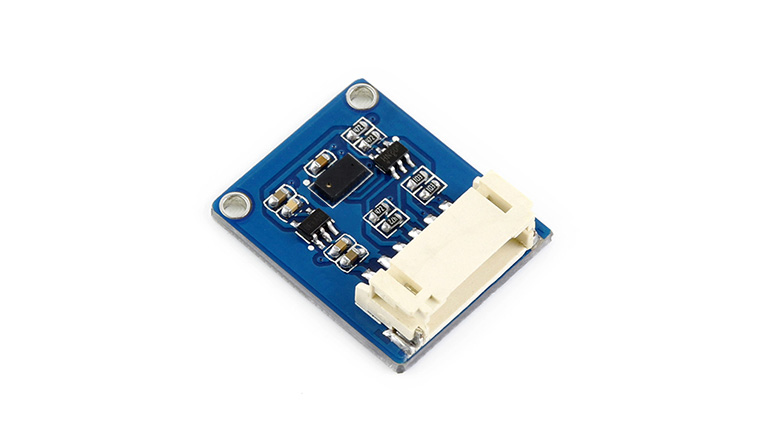

VL53L0X ToF Distance Ranging Sensor 2m I2C use for Raspberry Pi Mobile Robot

Description:

• VL53L0X Distance Sensor is a Time-of-Flight (ToF) ranging module based on the VL53L0X from ST, with accurate ranging up to 2m, it is controlled through I2C interface, and pretty low power consumption.

• The VL53L0X is a ToF sensor which embeds the ST’s second generation FlightSense patented technology.

• Unlike conventional ranging sensors, the VL53L0X is able to provide accurate distance measurement whatever the target color and reflectance, achieves better anti-interference capability.

Features

• I2C communication interface, control the module on/off via IO pins

• Onboard voltage translator, compatible with 3.3V/5V operating voltage

• Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

• Operating voltage: 3.3V/5V

• Dimension: 20mm × 24mm

• Mounting holes size: 2.0mm

• Ranging distance: 30 ~ 2000mm

• Ranging accuracy: ±5% (high speed mode), ±3% (high accuracy mode)

• Ranging time (min): 20ms (high speed mode), 200ms (high accuracy mode)

• Field of view: 25°

• Laser wavelength: 940nm

• Operating temperature: -20 ~ 70°C

Applications

• Mobile robot (fast distance ranging, obstacle detecting, wall tracking)

• User detection to power on/off and lock/unlock devices like personal computers/laptops/tablets

• 1D gesture recognition

• Camera (autofocus enhancement in low light, video focus tracking assistance)

Pinouts

• VCC: 3.3V/5V power input

• GND: ground

• SDA: I2C data pin

• SCL: I2C clock pin

• SHUT: shutdown control, connects to IO pin

• INT: interrupt output, connects to IO pin

Package Contents

• VL53L0X Distance Sensor x1

• PH2.0 6PIN wire 20cm x1
