1.8 inch TFT LCD ST7735S Display Module128x160 51/AVR/STM32/AR​M 8/16 bit

Price:

6.21


9W High Power Imitation Lumen RGB Led Four Feet
9W High Power Imitation Lumen RGB Led Four Feet
1.09
1.09
4.8/6.3MM Plug Spring Insulated Terminal Cold Terminal Crimp Terminal 10CM/20CM
4.8/6.3MM Plug Spring Insulated Terminal Cold Terminal Crimp Terminal 10CM/20CM
0.50
0.50

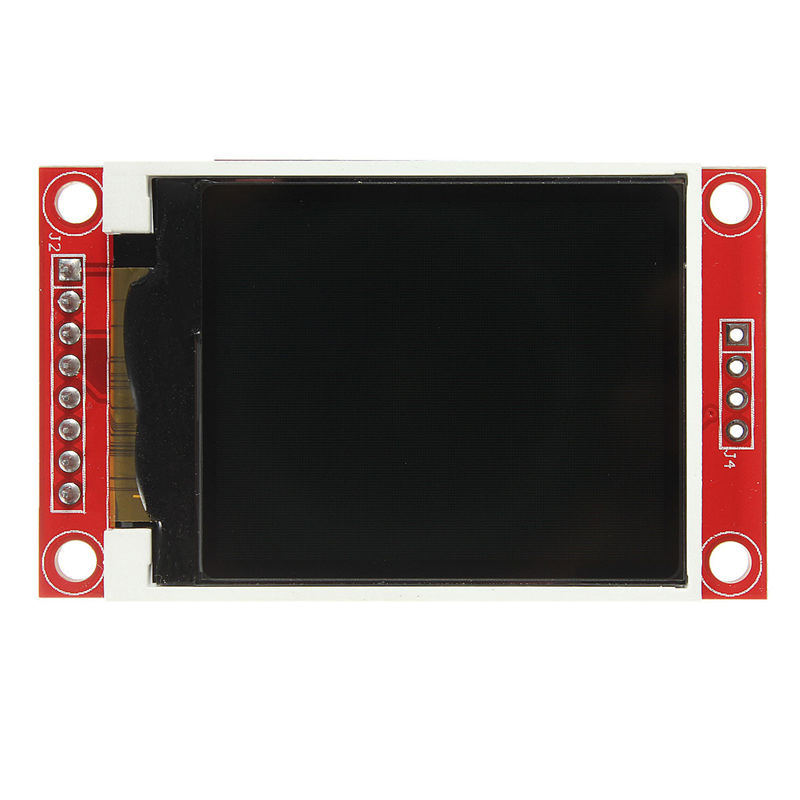

1.8 inch TFT LCD ST7735S Display Module128x160 51/AVR/STM32/AR​M 8/16 bit

https://www.qskj.cc/web/image/product.template/6418/image_1920?unique=ea656d2
(0 review)

8.29 8.290000000000001 USD 8.29

¥ 60.00

Not Available For Sale


    This combination does not exist.


    Categories :
    Character LCD Module
    SKU :
    1941115
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Description

    • Size: 1.8 inch

    • Resolution:128 * 160

    Instructions

    • Program default IO connections:

    • sbit LCD_CS = P0 ^ 0; Chip Select

    • sbit LCD_RS = P0 ^ 2; data / command switch

    • sbit LCD_SDA = P1 ^ 5; Data

    • sbit LCD_SCK = P1 ^ 7; Clock

    • sbit LCD_REST = P0 ^ 1; Reset

    Features:

    • TFT Power: Screen Power is 2.8-3.3V; remember not to use 5V

    • (Modules with PCB\'s have inherited 3V regulator I C, you can enter 5V)

    • Backlight power supply (LED pin): 3.2V maximum backlight power

    • (At 3.3V supply can be connected in series for 10 ohm current limiting resistor in series with 100 ohms or 5V

    • Resistance).

    • Data port level: theoretically can not let the data port level exceeds 3.3V, if you must

    • IO connection with 5V microcontroller data bus, as tft internal voltage clamp, with

    • Can be used, but is not  standard. You can do an experiment to test a sample batch

    • Made product, in order to improve product stability, better use of low-voltage monolithic

    • Machine or add a level converter I C.

    Package included:

    • 1 x 1.8 inch 1.8" TFT LCD Display module ST7735S 128x160 51/AVR/STM32/ARM 8/16 bit W
