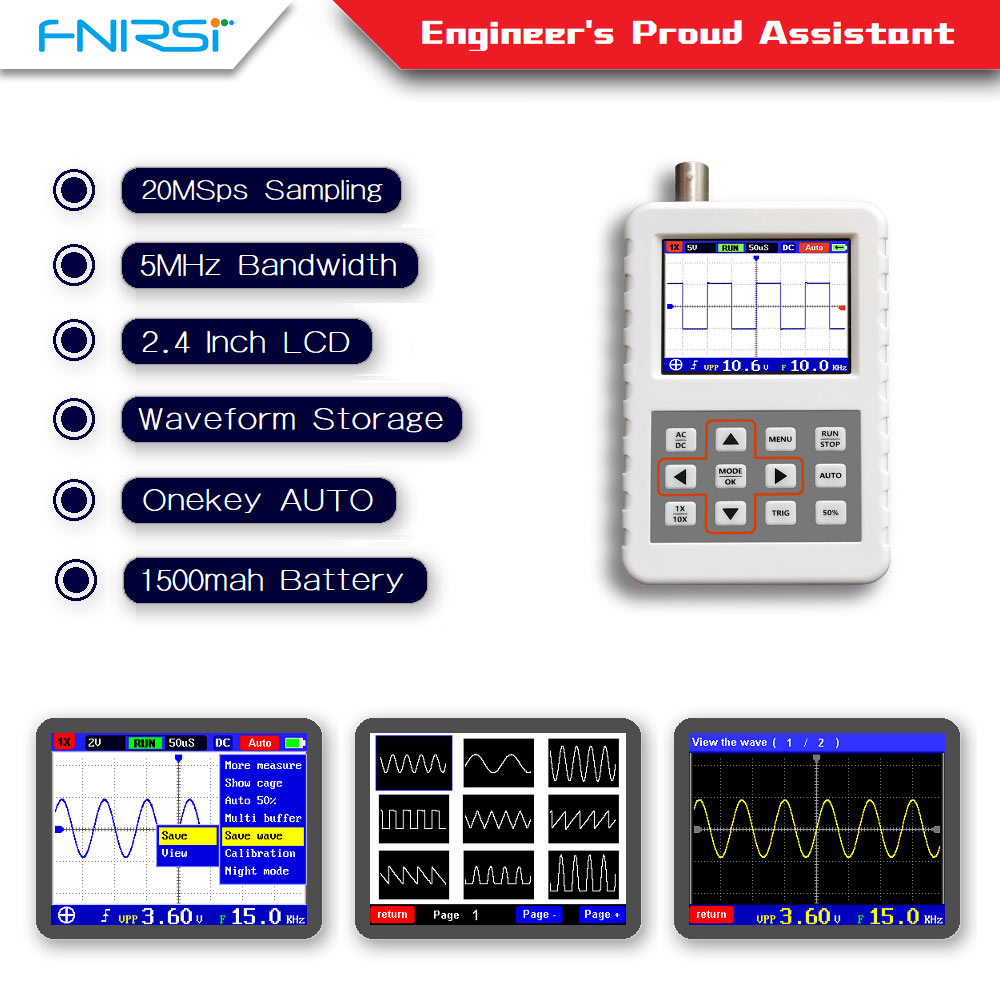

DSO FNIRSI 5Mhz Analog Bandwidth 20MS Sampling Rate Handheld Mini Digital Oscilloscope

Features:

• Fast waveform storage

• Afterglow display technology

• Day mode and night mode

• Ultra small volume, easy to carry

• Equipped with high efficiency one button AUTO

• Complete triggering function (single, normal, automatic)

• Memory compression technology, waveform refresh screen does not flicker

• Built-in 16M storage space, the maximum storage of 500 waveform pictures

• 2.4 inch color display screenAt any time, the waveform display (pause function) is frozen

• Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions

• High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 40 ~ 800V

• Up to 11 parameters measurement:VPP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Time

• Built in 1200mAh rechargeable lithium battery can be continuously charged for 3 hours at one time

Parameters:

• Analog band width: 5MHz

• Maximum real time sampling rate: 20MS/s

• Vertical sensitivity: 50 mV/div ~ 200 V/div

• Horizontal time base range: 50S/div ~ 250nS/div

• Maximum input voltage: 40V (1probe), 800V (10 probe)

• Storage depth: 40KB

• Input resistance: 1M

• ADC precision: 8bits

• Coupling mode: AC/DC

• Trigger mode: Single, Normal, Automatic

• Trigger edge: Ascending/descending edge

• External trigger voltage 0 – 40 V

• Display: 2.4 inch, 320 * 240

• Power supply: 1200 mAh lithium battery

• Size: 107 x 70 x 24mm

Package includes:

• 1 x DSO FNIRSI PRO oscilloscope host

• 1 x Crocodile clip probe

• 1 x Micro USB data line

• 1 x User manual (English)
