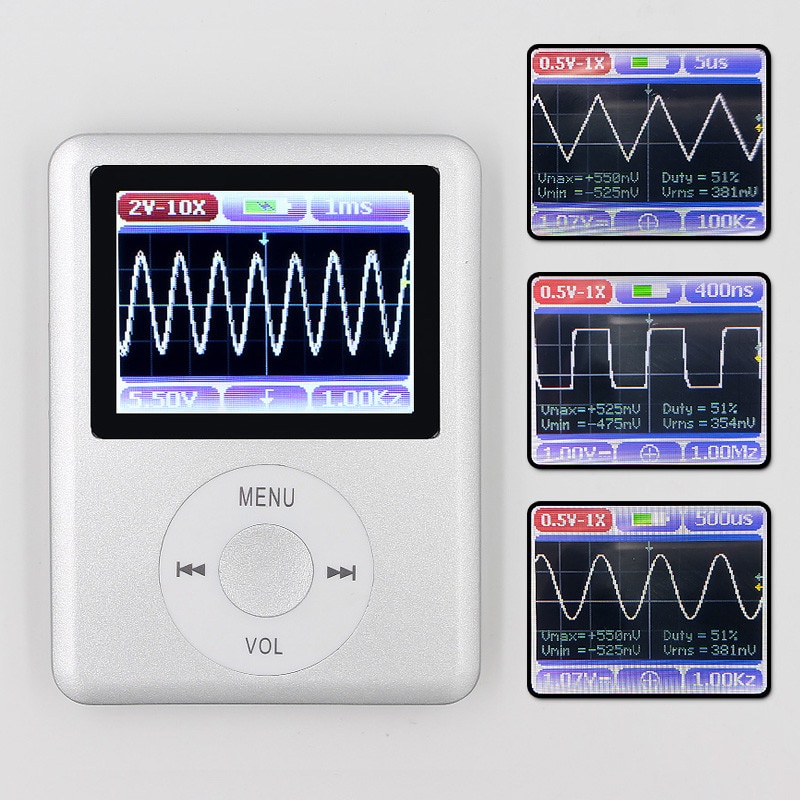

DSO168 20MHz Analog Bandwidth 50MS Sampling Rate Mini Digital Oscilloscope

Description:

FNIRSI-168 is a super small digital oscilloscope with 50 MS/s sampling rate and 20 MHz bandwidth is designed for electronic enthusiasts and circuit R & D maintenance personnel. 20 MHz bandwidth can be used for an amplifier, oscillator, automatic control system, DC/DC, inverter, switching power supply and so on. Whether DIY or scientific research education, vehicle maintenance, household appliances maintenance and so on are all good choices.

Features:

• Ultra small volume, easy to carry

• 1.8-inch color display screen

• Frequency can be displayed, Vmax, Vmin, Duty, Vrms, Vpp

• At any time, the waveform display (pause function) is frozen

• Memory compression technology, waveform refresh screen does not flicker

• High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 40 ~ 800V

• Battery/USB power supply, built-in 800 mAh battery and intelligent charge management

Parameters:

• Analog band width: 20 MHz

• Storage depth: 384 KB

• Input resistance: 1M

• ADC precision: 8 bits

• Coupling mode: AC/DC

• External trigger voltage 0 – 40 V

• Display: TFT color display

• Trigger mode: Continuous

• Trigger edge: Ascending/descending edge

• Power supply: 800 mAh lithium battery

• Size: 73 x 55 x 10 mm (2.87 x 2.17 x 0.39 in)

• Maximum real time sampling rate: 50 MS/s

• Vertical sensitivity: 50 mV/div ~ 200 V/div

• Horizontal time base range: 100 mS/div ~ 100 nS/div

• Maximum input voltage: 40 V (1X probe), 800 V (10X probe)

Package includes:

• 1 x FNIRSI-168 oscilloscope host

• 1 x 40 MHz 10X probe (3.5 mm turn BNC switch head)

• 1 x Mini USB data line

• 1 x User manual (English)

Reminder: Shut down while holding down the middle button and the "vol" button.
