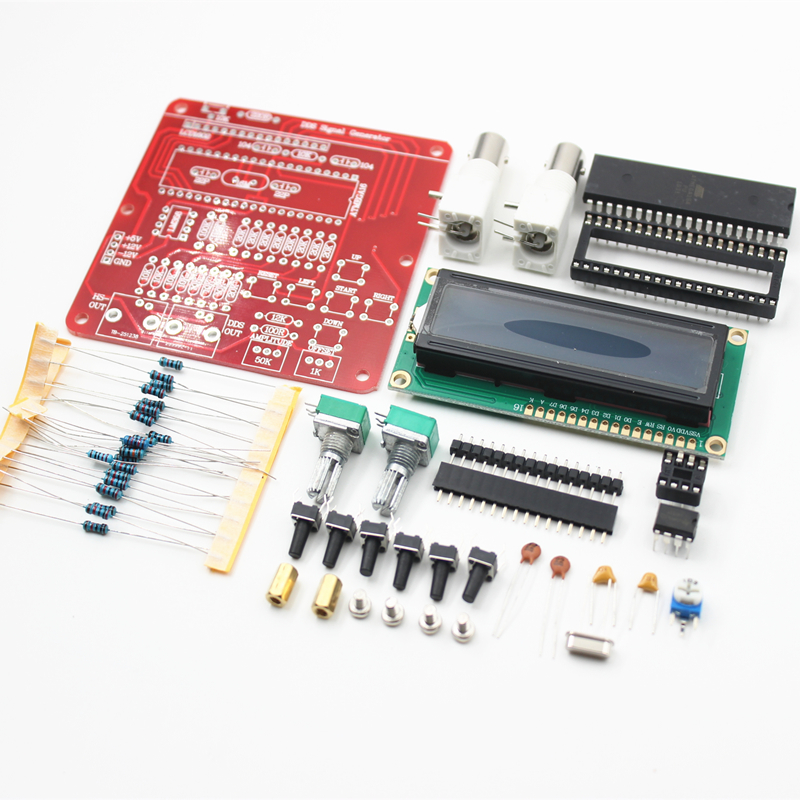

A96 DDS Function Sine Square Sawtooth Triangle Wave Module Digital Signal Generator

Features:

• Provided lots of electronic components for you to do it by yourself.

• Simple circuit with easily accessible and cheap components.

• Delicated high speed (HS) signal output up to 8MHz.

• DDS signal with variable amplitude and offset.

• DDS signals: sine, square, saw, rev saw ,triangle, ECG and noise.

• 2 * 16 LCD menu, intuitive 5 button keypad.

• Frequency adjusting steps: 1, 10, 1000, 10000MHz.

• Restoring last configuration after power up.

• Has two outputs-one for DDS signal and another for high speed aquare signal.

Installation Detail: http://www.dropbox.com/s/z0ktc666sct1gj1/H11887install.pdf?dl=0

Parameters:

• Material: PCB + Electronic Components

• Power Supply: +5V / +12V / -12V

• Menu Displey: 2 * 16 LCD

• HS Signal Frequency: 1, 2, 4, 8MHz

• Red Board Size: 8 * 8cm / 3.15 * 3.15in (L * W)

• Red Board Weight: 20g / 0.7oz

• Screen Size: 6.5 * 1.5cm / 2.6 * 0.6in (L * W)

• Screen Board Weight: 29g / 1.04oz

• Package Size: 15 * 11 * 2cm / 5.9 * 4.3 * 0.8in (L * W * H)

Package List: 1 * Bag of Electronic Components.
