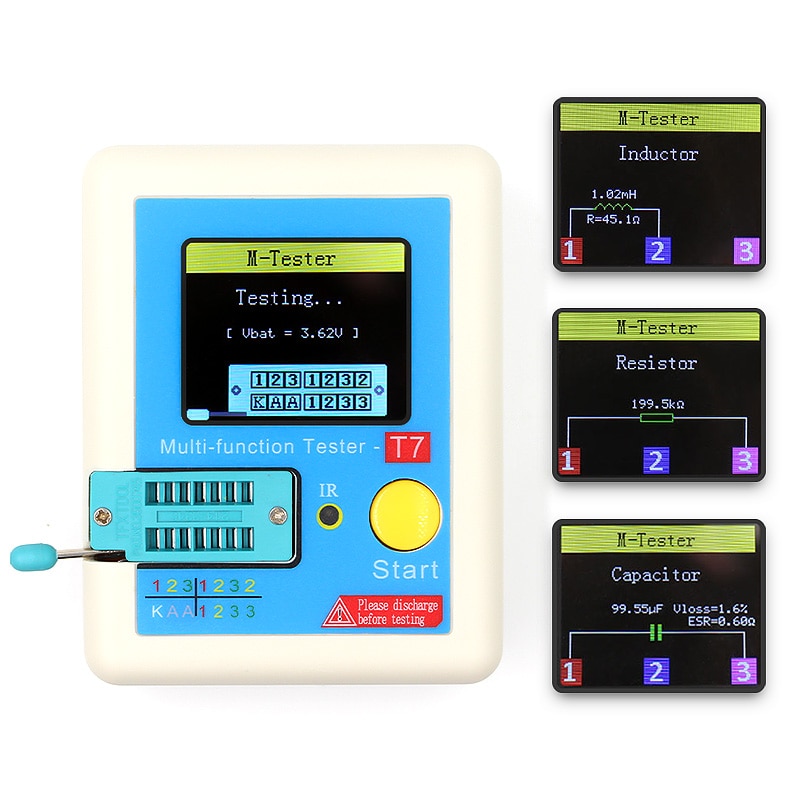

LCR-T7 TFT Diode Triode Capacitance Meter LCR ESR Meter NPN PNP IR Multifunction Transistor Tester

Features:

TC-V2.12k is a TFT graphic display Multifunction Tester.

Transistor Tester

• Automatic detection of zener diode  0.01-30V

• Self test with automatic calibration

IR decoder

• Support Hitachi IR coding

• IR waveform display

• Infrared receiving instruction

Other

• Measurement results using TFT graphic display(160x128)

• One key operation

• Auto Power Off(Timeout Settable)

• Support Chinese and English

Parameters:

Operation Instruction:

1.1 Key operational definitions

      Multi-function key has two actions:

• Short press: Press the key and not less than 10 ms, release key within 1.5 seconds

• Long press: Press the key more than 1.5 seconds

1.2 Power on

      In the power off state, short press the multifunction key, the tester is turned on and automatically measured.

• Power on & measurement interface

1.3 Detect transistor:

• In the power off state or the test is completed, put the test element into the transistor test area of test seat, and press the locking handle, short press the multifunction key, the tester automatically measure, graphical display of measurement results when testing is complete.

• Warning: Always be sure to DISCHARGE capacitors before connecting them to the tester! The tester may be damaged before you have switched it on!

  We do not recommend using the tester to meas ure the battery! The battery voltage must be less than 4.5V, otherwise the tester may be damaged!


•


Component placement

       Test seat are divided into transistors and zener diode test area, detailed in 1.1 Description.
