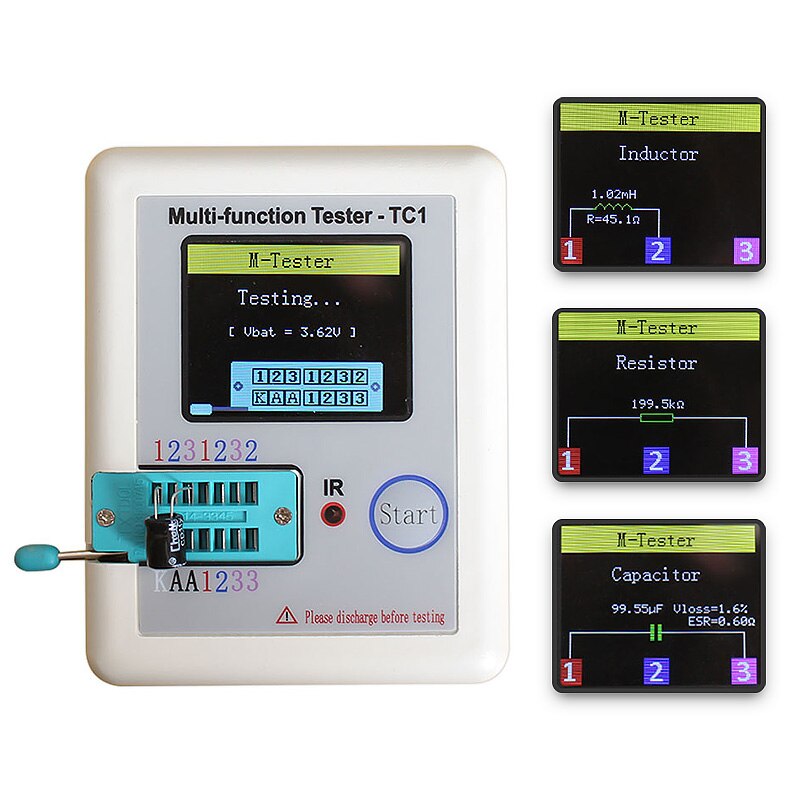

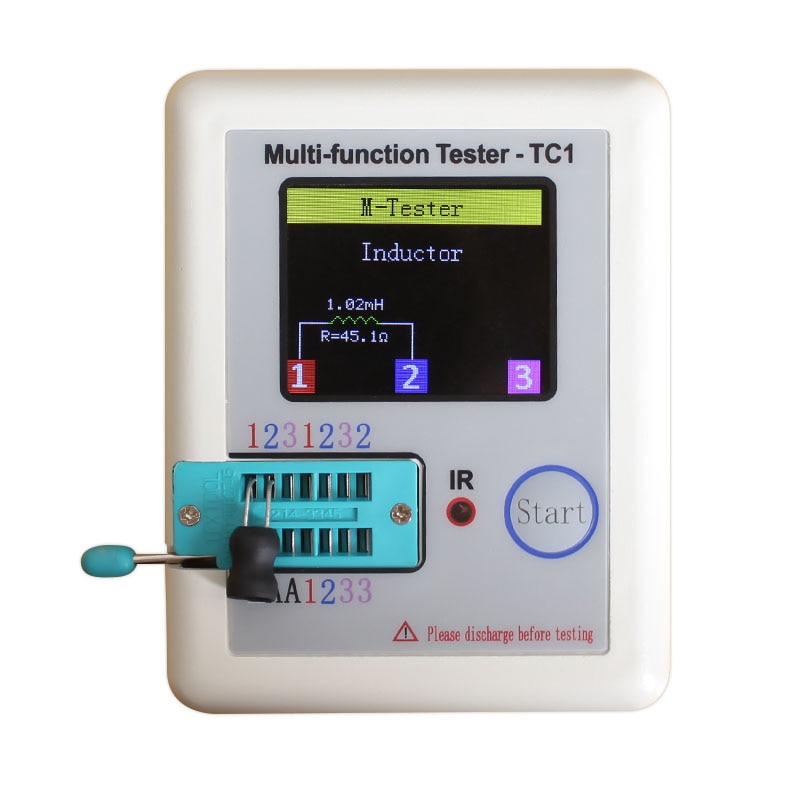

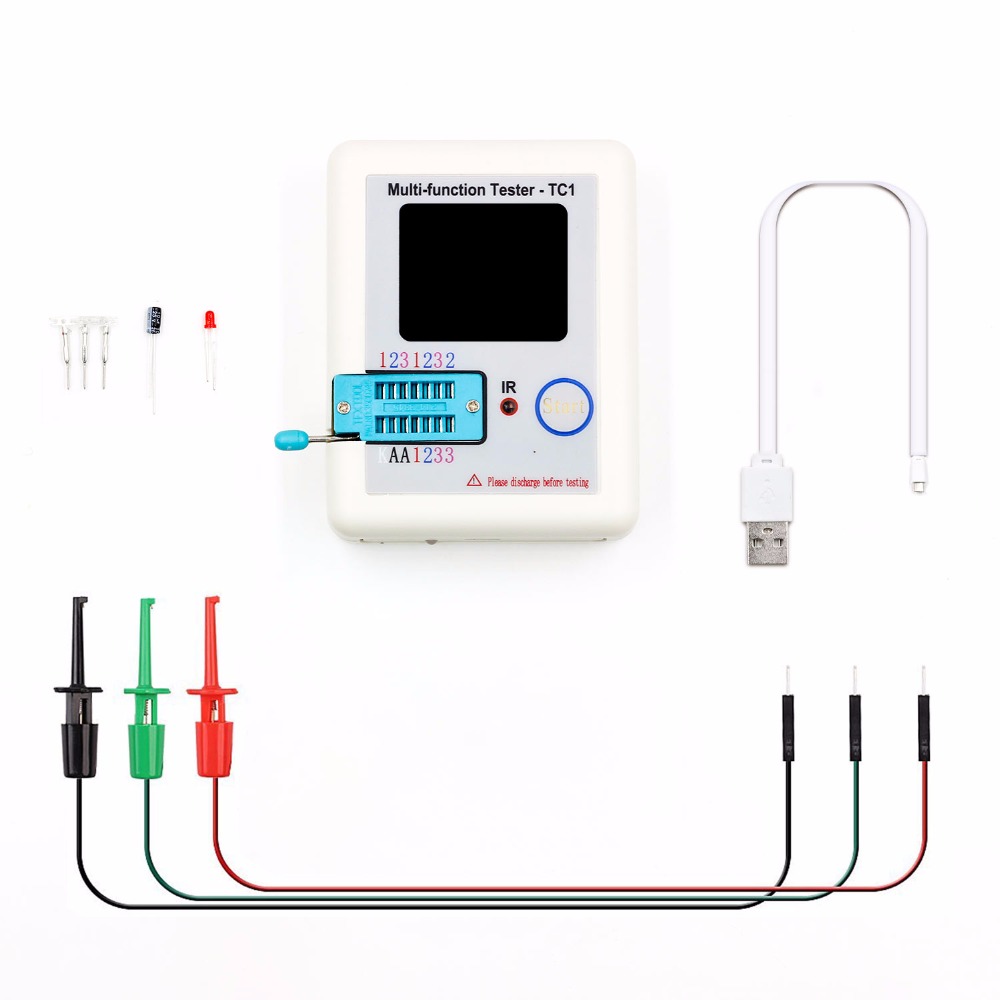

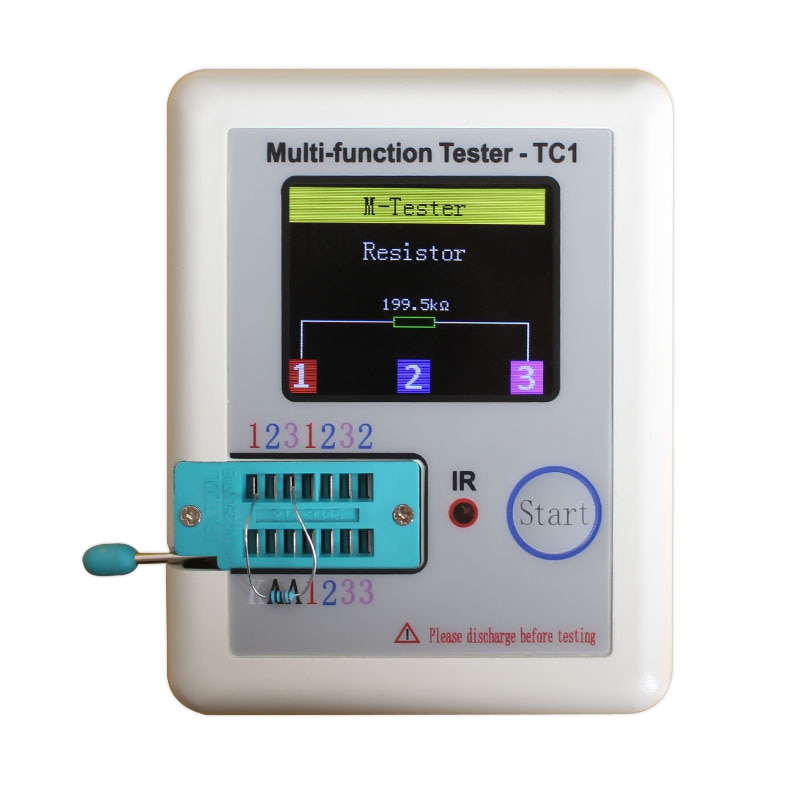

LCR-TC1 1.8inch Colorful Display TFT Backlight Multi-functional Transistor Tester

https://www.qskj.cc/web/image/product.template/6493/image_1920?unique=fb4d6cf
(0 review)

15.96 15.96 USD 15.96

¥ 112.00

Not Available For Sale


    This combination does not exist.


    Categories :
    Transistor Tester
    SKU :
    1941196
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Features:

    • It can be widely used to detect NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery etc.

    • It can also be used to detect infrared wave forms.

    • It also can detect zener diode and has the function of self-calibration.

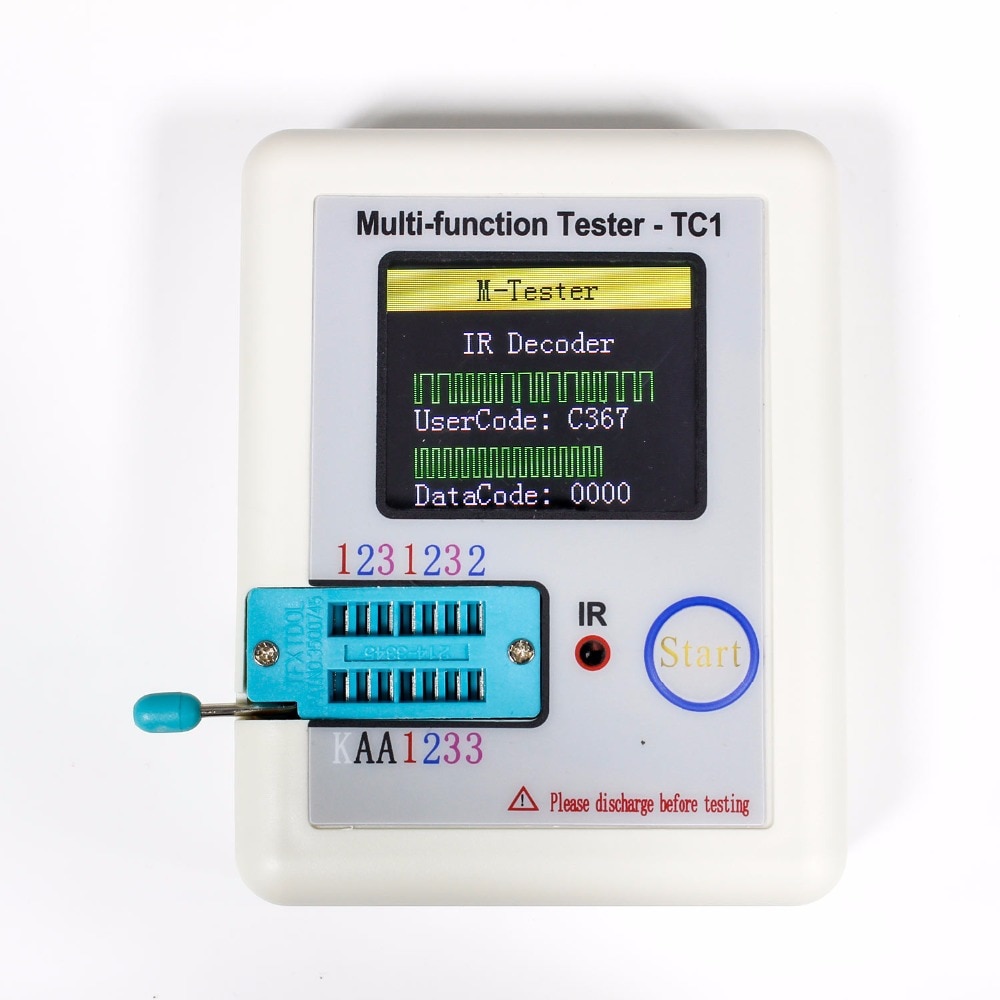

    • After detection, align the infrared remote control with the "IR" light, then press the button in the remote control, if the detector successfully decode it, it will display the data code and infrared wave form.

    • One button operation, automatically detect and shutdown, and you can press the multi-functional button to close the detector too.

    • Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly.

    • Not like the usual black and white display, this detector will show results in color.

    Parameters:

    • Display: 1.8inch TFT Screen

    • Diode Range: < 4.5V

    • Zener Diode:Transistor Detect Area: 0.01-4.5V

    • Zener Diode Detect Area: 0.01-30V

    • Triac Range: IGT < 6mA

    • Capacitance: 25pF-100mF

    • Resistor: 0.01-50MΩ

    • Inductance: 0.01mH-20H

    • Battery: 0.1-4.5V

    • Power Mode: Rechargeable Lithium Battery

    • Item Size: 8.8 x 8 x 2.8cm / 3.47 x 3.15 x 1.10in
