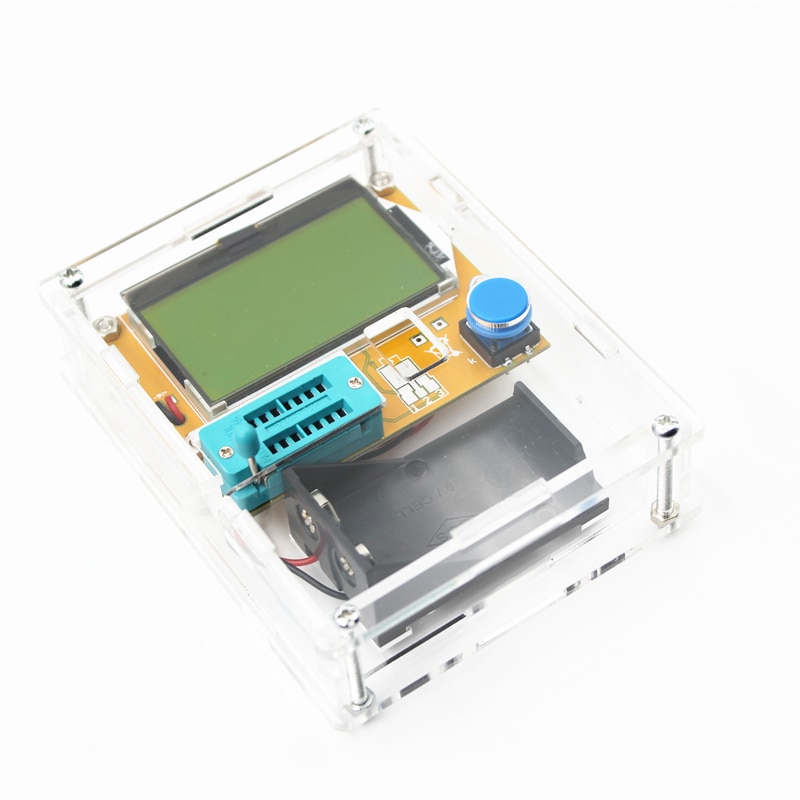

Mega328 Diode Triode Capacitance ESR Meter Transistor Tester MOS/PNP/NPN L/C/R+ Transistor Tester Case

Features:

• The display is 128*64 LCD with backlight in yellow-green color.

• Powered by 9V layer-built battery. 2 li-ion batteries combined can form a 8.4V battery pack for long time power.

• New function of boot voltage detection.

• Automatically detect NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, triodes, resistors, capacitors or other devices.

• Automatically test the pins of a component and display on the LCD.

• Measure the gate threshold voltage and gate capacitance of the MOSFET.

• Measure bipolar transistor current amplification factor and base-emitter threshold voltage.

• One-button operation, automatic shutdown to avoid unnecessary waste.

• Short detection time: only 2 seconds. It is normal to cost 1 minute for bulk capacitor detection.

Parameters:

• Material: PCB

• Display: 128 * 64 LCD

• Normal Testing Speed: 2 seconds

• Shutdown Current: 20nA

• Item Size: 6.5 * 6.5 * 1.3cm / 2.6 * 2.6 * 0.5in

• Package Size: 10 * 8 * 2cm / 3.9 * 3.2 * 0.8in

Note:

• Please make sure that capacitors are discharged before testing.

• The disassembled transistor tester in the picture is just for reference, please don't disassemble.

• The pictures of testing process are also for reference, please in kind prevail!
