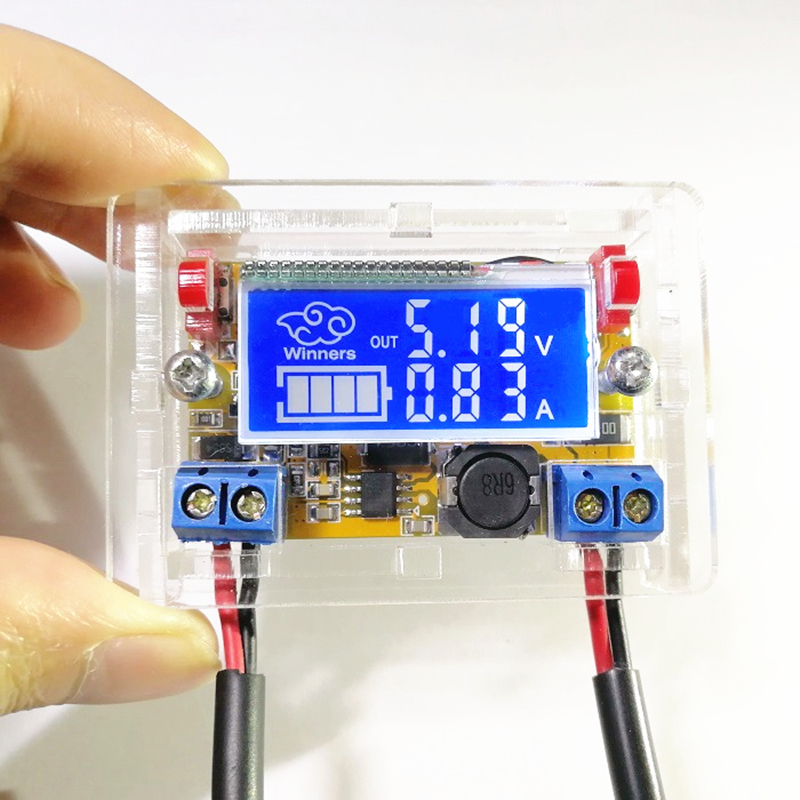

DC-DC Adjustable Step-down Regulated Power Supply Module Voltmeter Dual Display Diy Kit

Features:

• Exquisite acrylic shell.

• Shows that adopting the STN LCD screen, can display voltage and current

• at the same time, blue white, large wide-angle any Angle is very clear.

• Button adjustable voltage, left to reduce voltage, right as the applied voltage,

• single according to fine-tune 0.04 V voltage, long press 1 s not to put;

• voltage can be adjusted quickly, can withstand one hundred thousand presses;

• Compared with the similar potentiometer voltage regulation is more convenient and quick.

Parameters:

• Conversion Efficiency: 95%

• Load Regulation S( I)≤0.8%

• Voltage Regulation S( U )≤0.8%

• Shell Size(L*W*H):62 x 44 x 18 mm

• Input Voltage: 5~23V,Max 23V (recommended to use within 20V)

• Output Voltage: 0~16.5V adjustable ( It can save the last set voltage automatically)

• for peak Current: 3A ( Recommended use in 2A)

Notes:

• Manual measuring, please allow 1 ~ 3 cm error,thank you.

• Accuracy:1%,minimum display 0.01 A,fever greater than 2A,

• please think of ways to solve the heat problem yourself.

Package Included: 1 x DC-DC Adjustable Power Module.
