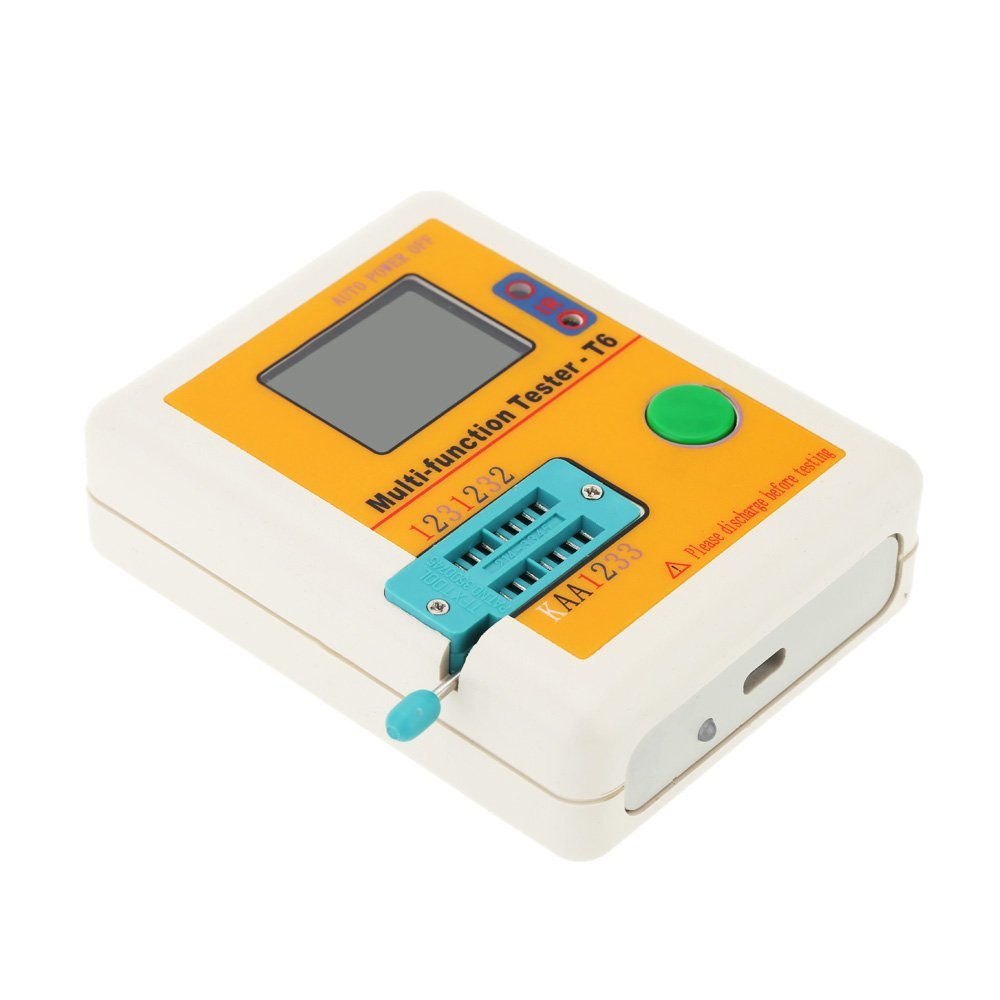

LCR-T6 LCD Backlight Mosfet NPN PNP Detector Multi-functional Transistor Tester

https://www.qskj.cc/web/image/product.template/6499/image_1920?unique=8074831
(0 review)

22.20 22.2 USD 22.20

¥ 161.00

Not Available For Sale


    This combination does not exist.


    Categories :
    Transistor Tester
    SKU :
    1941202
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Features:

    • It also can detect zener diode and has the function of self-calibration.

    • It can used with infrared decoder to test infrared wave forms.

    • Automatically test the pin of a component, and display on the back light LCD screen.

    • It can detect NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, triac etc.

    • One button operation, automatically detect and shutdown, and you can press the multi-functional button to close the detector.

    Parameters:

    • Power Mode: Rechargeable Li-Po Built-in

    • Display: 3 * 2.3cm LCD Screen

    • Diode Range: < 4.5V

    • Triac Range: IGT < 6mA

    • Capacitance: 25pF-100mF

    • Resistor: 0.01-50M

    • Inductance: 0.01mH-20H

    • Item Size: 9 * 7 * 3cm / 3.54 * 2.76 * 1.18in

    • Zener Diode Transistor Detect Area: 0.01-4.5V  Zener Diode Detect Area: 0.01-30V

    Note:

    • Before testing, please discharge the electronic components to protect the detector.

    • When the voltage of the inside battery is under 3V, please charge it before usage.

    • Please use 5V battery or USB interface to charge.
