128*160 TFT Color Display Capacitance Resistor Inductance ESR LCR Meter Transistor Tester

Features:

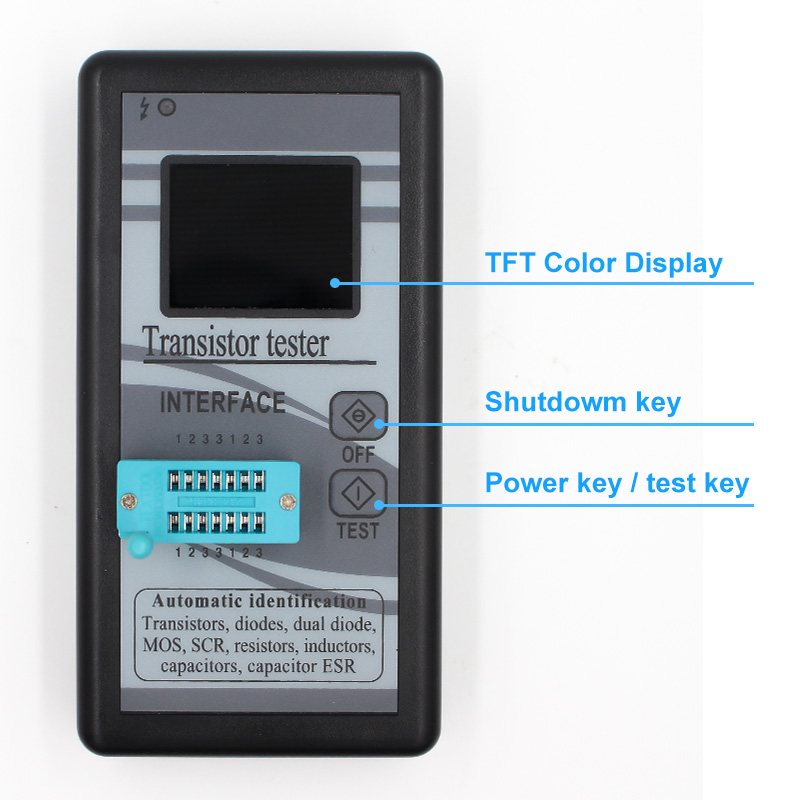

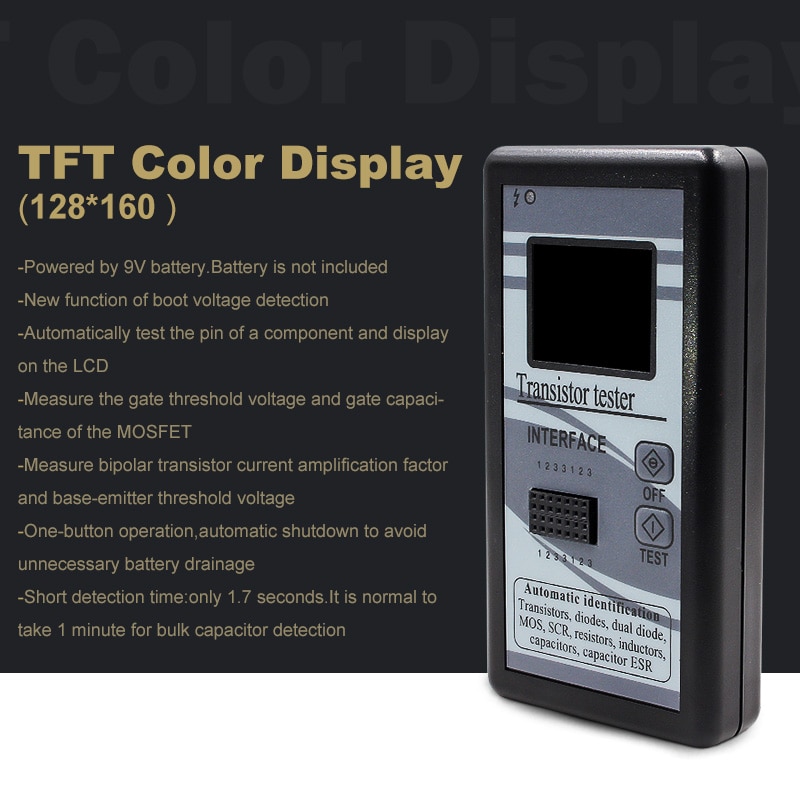

• 128 x 160 TFT color display

• Powered by 9V battery (battery not included)

• New boot voltage detection

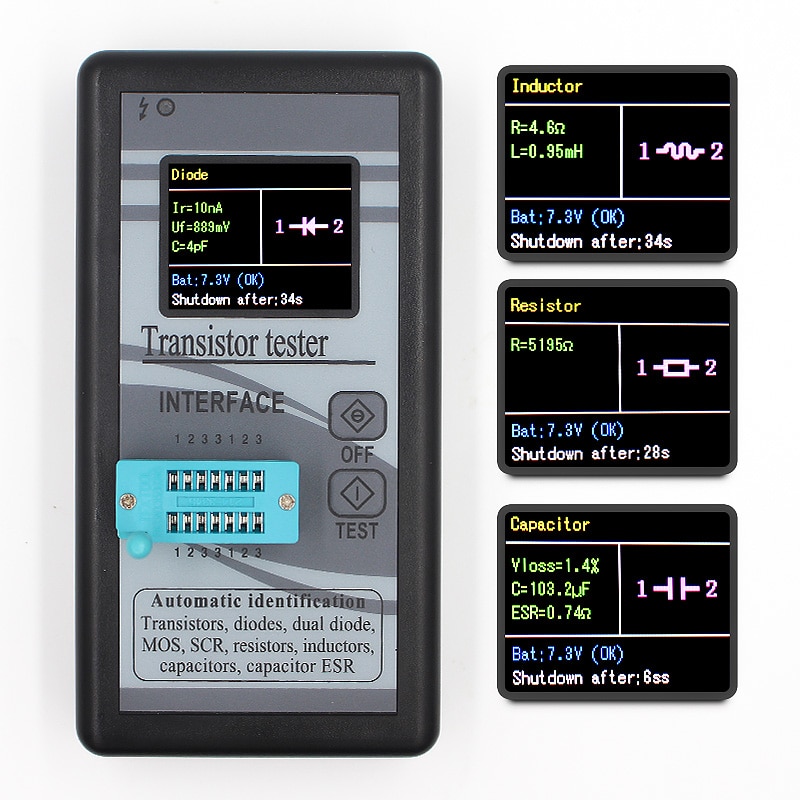

• Automatically test the pins of a component and display on the LCD

• Measure the gate threshold voltage and gate capacitance of the MOSFET

• Measure bipolar transistor current amplification factor and base-emitter threshold voltage

• One-button operation, automatic shutdown to avoid unnecessary battery drainage

• Short detection time: only 1.7 seconds (it is normal to take 1 minute for bulk capacitor detection)

Parameters:

• Display: 128 x 160 TFT color display

• Normal testing speed: 1.7 seconds

• Shutdown current: 20nA

• Resistor test range: 0.5 ohms - 50M ohms

• Inductor test range: 0.01mH - 20H

• Capacitor test range: 25pF - 100000uF

• Color: Black

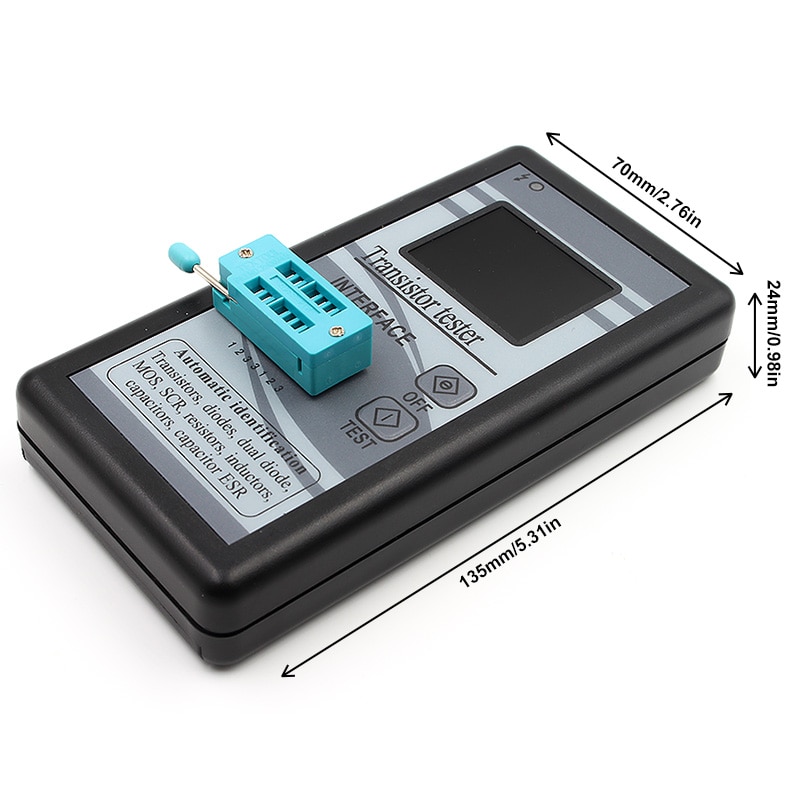

• Item size: 135 x 70 x 25 mm (5.31 x 2.76 x 0.98 in)

Reminder: Please make sure that capacitors are discharged before testing

Package includes: 1 x Transistor tester ; 1 x 14-Pin connector.
