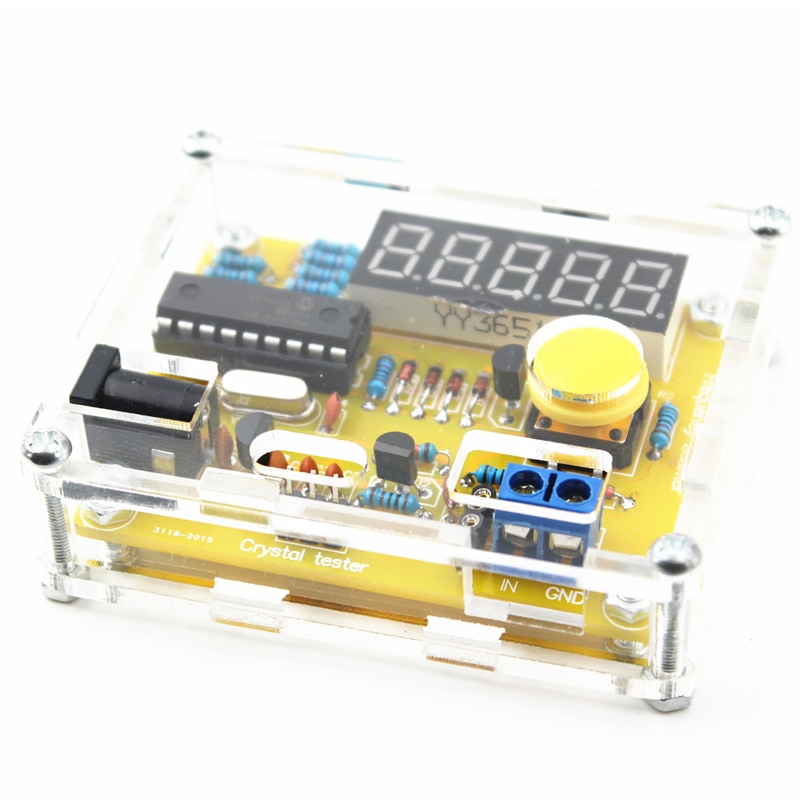

1Hz-50MHz Frequency Counter Meter Crystal Oscillator Tester with Shell Parts LED DIY Kits

https://www.satisled.com/web/image/product.template/6485/image_1920?unique=99581fd
(0 review)

6.67 6.67 USD 6.67

¥ 48.00

Not Available For Sale


    This combination does not exist.


    Categories :
    Transistor Tester
    SKU :
    1941188
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Features:

    • Frequency range 1 Hz ... 50 MHz

    • Five digits resolution (display for example x.xxxx kHz, x.xxxx MHz,

    • or xx.xxx MHz)

    • Measuring signal amplitude can be up to 30 v

    • 4-40 m passive crystals can measure

    • Automatic range switching with different gate times

    • Optional addition or subtraction of a frequency offset (programmable)

    • Very low component count: a PIC 16F628, 5 7-segment LED displays, a 20MHz crystal and a few resistors

    • Optional (configurable) power-saving mode which automatically turns

    • The display off if the frequency didn't change significantly within 15seconds

    • USB 5V or DC5-12V power supply can be used

    Package included:

    • 1x DIY Kits

    • 1x USB cable
