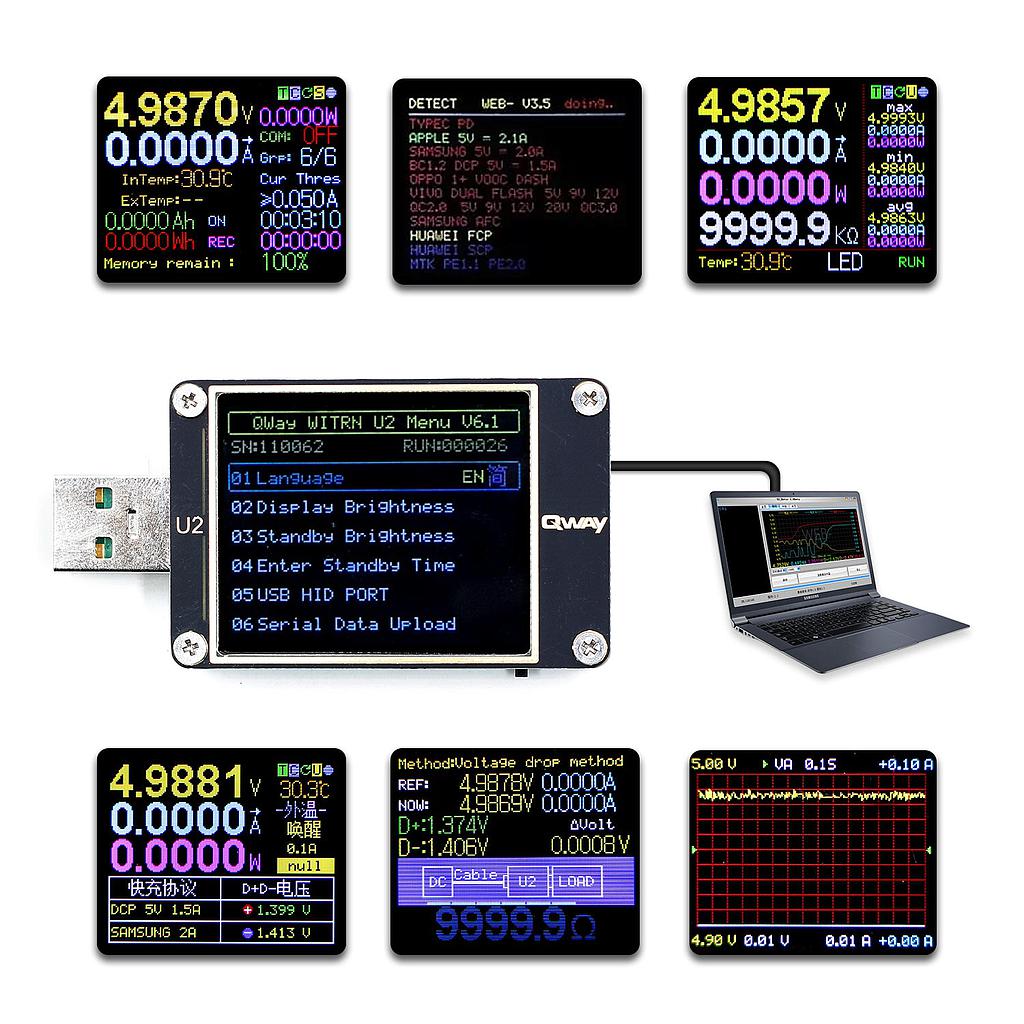

WEB-U2 USB Tester QC4+ PD3.0 2.0 PPS Fast Charging Protocol Capacity Test

https://www.satisled.com/web/image/product.template/6503/image_1920?unique=99581fd
(0 review)

28.36 28.36 USD 28.36

¥ 204.00

Not Available For Sale


    This combination does not exist.


    Categories :
    Voltage Meters
    SKU :
    1941206
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Features:

    • Low-voltage nickel-metal hydride battery measurement

    • Support HAWEI FCP SCP Broadcast dynamic adjustment

    • Apple device charging acceleration

    • Gravity sensing,automatically rotates the screen

    • Test the internal resistance of the wire

    • Charging protocol speculation demonstration

    • Two-way Current Detection

    • Apple PD Charger SN Serial Number Detection

    • PD E-Marker Wire detection

    • PD3.0 PPS QC4+ detection trigger

    • PD sniffing, monitoring, communication packet tracer mode

    • Support English display ,can download the user manual from the QR code of the product

    • CNC Version is made of aluminum alloy and is more scratch resistant

    • 6-bit high-precision display, 5/6-bit one-button switching, support for external H ID power supply

    • USB H ID externally independent power supply, can be started at 0V, and can measure low voltage

    Parameters:

    • Type: WEB-U2 Current Voltage Meter

    • Voltage: DC 4~24V

    • Master chip: STM32F072 ARM Kernel

    • Current: 0-5A

    • Display:1.77inch TFT screen ; 128 * 160 Resolution

    • Voltage Resolution: 0.0001V

    • Size: 52.5 * 34.5 * 13mm(Prox.)

    • Current accuracy: Range 0.1%±nd

    • USB interface: USB2.0 5P male ; USB2.0A female

    • Ampere hourcapacity: 99999Ah(6 groups)

    • MicroUSB: PC Input ,PC USB H ID

    • Ampere hourresolution: 0.0001Ah

    • TYPE-C: 2PC IN and OUT

    • Ampere-hour capacity: 99999Wh(6 groups)

    • Button: OK and M key

    • Watt time resolution: 0.0001Wh

    • Power on time: 100 hours

    • Temperature Measurement: -40 C~180 C

    • Charging time: 100 hours

    • D+D-Voltage: Support measurement

    • Built-in load: built-in current to

    • small load MTK

    • Fast charge protocol: Support detection trigger

    • Bluetooth module: Bluetooth 4.0 wireless module (Optional)

    • FD trigger: PD2.0 PD3.0 PPS QC4+E-Marker

    • Firmware upgrade: USB HI D free drive

    • Memory: FRAM ferroelectric (10 billion brush write life)

    • PC host computer: USB HI D free drive

    • Static power consumption: Turn off the screen, close the data port < 10mA

    • Force sensor: Built-in 3-axis gravity sensor

    • Internal resistance: connected to the USB interface 35m ohm(Prox.)

    • Serial number: Built-in independent SN body identification serial number

    • Temperature Sensor: one temperature sensor inside the tester, it can be connect to a external temperature sensor(optional)

    Package Includes:

    1 x Standard Version WEB-U2 USB Tester (optional)

    1 x CNC Version WEB-U2 USB Tester (optional)
