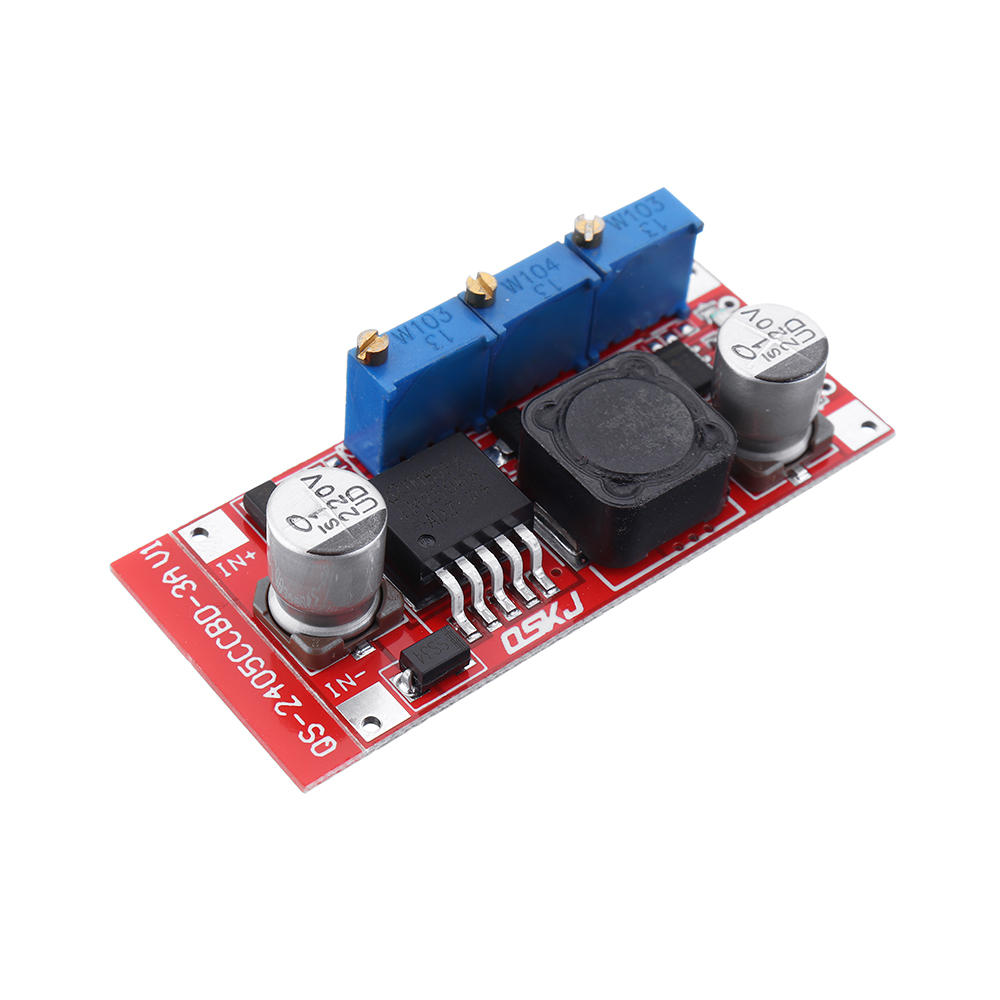

DC-DC 7-35V to 1.25-30V CC CV LED Buck Converter Power Supply Charging Module QS-2405CCBD-15W

https://www.satisled.com/web/image/product.template/6690/image_1920?unique=99581fd
(0 review)

1.19 1.19 USD 1.19

¥ 8.60

Not Available For Sale


    This combination does not exist.


    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Brand: QSKJ

    Model:  QS-2405CCBD-15W

    Parameters:

    • Input voltage: 7-35V

    • Output voltage: 1.25-30V

    • Output Current: Max 3A ( If more than 15W, please install the heat sink, this item do not include heat sink)

    • Constant current range :0-3A (adjustable)

    • Min Voltage pressure: 2V

    • Output power: natural cooling 15W

    • Conversion efficiency: 85% (the higher the output voltage, the higher the efficiency

    • Operating Temperature: Industrial (-40°c to +85°c) (if ambient temperature exceeds 40 °c, please lower power use, or to enhance heat dissipation)

    • Full load temperature rise: 45°c

    • No-load Current: typical 10mA (12V to 4.2V)

    • Load Regulation: ± 1%

    • Voltage Regulation: ± 0.5%

    • Current Accuracy and temperature: Actual Testing, Temperature changes from 20 degrees To 100 degrees, Constant current value change Less than 1% (constant current value 1A)

    • Dynamic response speed: 5% 200uS

    • Potentiometer adjustment direction:Clockwise (increase),Counterclockwise (decrease)

    • Indicator LED: Charging LED Red, Full Charge LED Green

    • Output Short-circuit Protection:YES

    • Input Reverse Polarity Protection:YES

    • Output Prevent Countercurrent: YES

    Battery Charging Method:

    • Make sure the recharge battery float voltage and charge current, input voltage of the module.

    • adjust constant voltage regulator, the output voltage about 3V.

    • With a multimeter ( to 10A) Measuring output Short-circuit current, Also adjust the constant regulator allows Output current gets a predetermined charge current value;

    • Adjust Constant regulator allows Output voltage gets the float voltage;

    • connected to the battery, try charging. (1,2,3,4 step input connect power, output do not connect battery.)

    LED Constant Current Driver Usage:

    • Make sure LED current and the maximum operating voltage;

    • adjust constant voltage regulator, the output voltage about 3V.

    • With a multimeter ( to 10A) Measuring output Short-circuit current, Also adjust the constant regulator allows Output current gets a predetermined LED working current value;

    • Adjust Constant regulator allows Output voltage get LED maximum working voltage;

    • Connected to the LED, test (1,2,3,4 take steps input connect power, output do not connected LED.)

    Applications:

    • Battery charger (including ferroelectric), 4V, 6V, 12V, 14V, 24V battery charging, nickel-cadmium nickel-metal hydride batteries (battery) charger, solar panels, wind generators.

    • Solar Panel, Wind generator voltage regulator, Car Power Supply.
