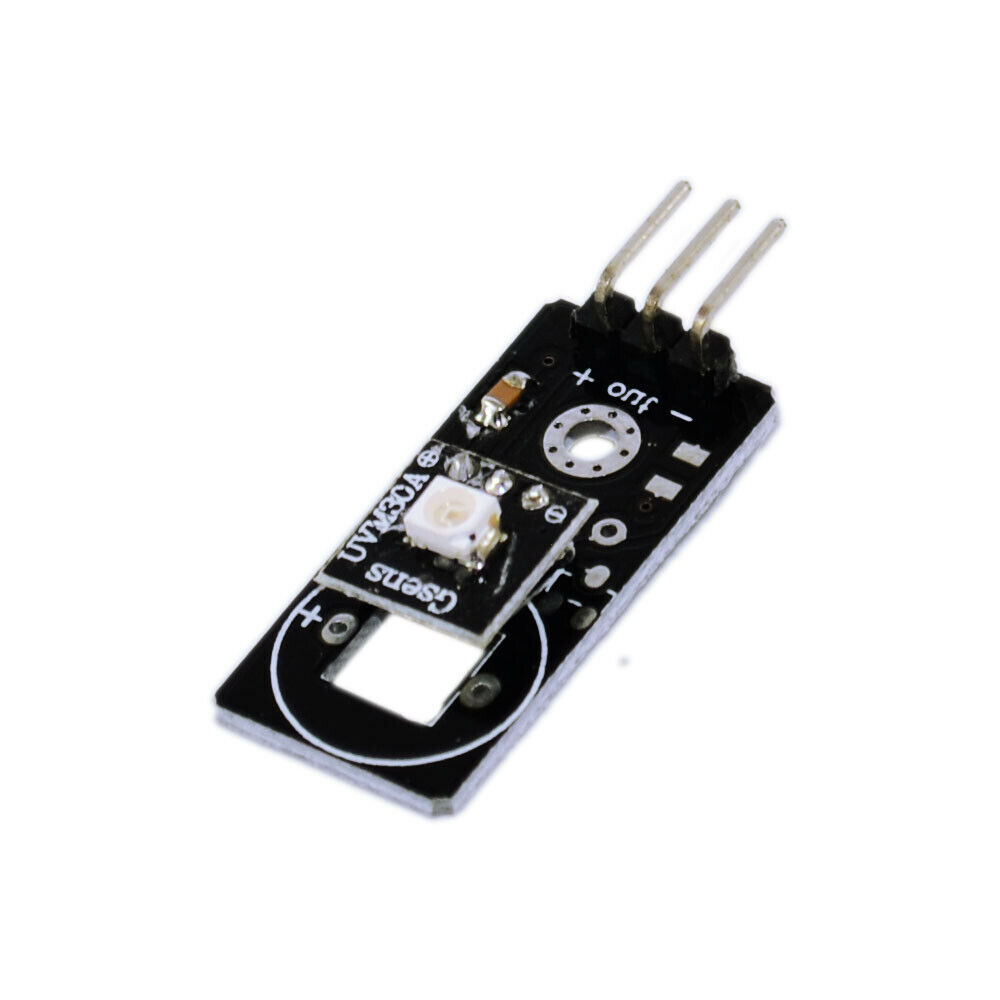

UVM-30A Ultraviolet Ray Detection Sensor Module 3-5V for Arduino

https://www.satisled.com/web/image/product.template/6841/image_1920?unique=d8c7308
(0 review)

5.61 5.61 USD 5.61

¥ 40.00

Not Available For Sale


    This combination does not exist.


    Categories :
    Optical Sensor
    SKU :
    1941915
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Features:

    • It is designed for high reliability and accuracy of the measurement of the UV index (UVI) design situations;

    • It is suitable for measuring total solar ultraviolet intensity;

    • The control of the World Health Organization classification standard UV index

    • The detection wavelength: 200-370nm UV;

    • The fast response, full interchangeability;

    • It uses the solid polymer structure, waterproof and dustproof patented easy cleaning;

    • The linear voltage signal output;

    • The small size, suitable for mobile phones and other portable products.

    Parameters:

    • Operating Voltage: DC 3-5V

    • Output voltage: DC 0-1V

    • Test accuracy: ±1UV INDEX

    • Current: 0.06mA(typ), 0.1mA(max).

    • Response wavelength: 200nm-370nm

    • Work temperature: -20℃~85℃

    • Detect UV wavelength:200-370nm

    • PCB size:28mm*12mm*10mm
