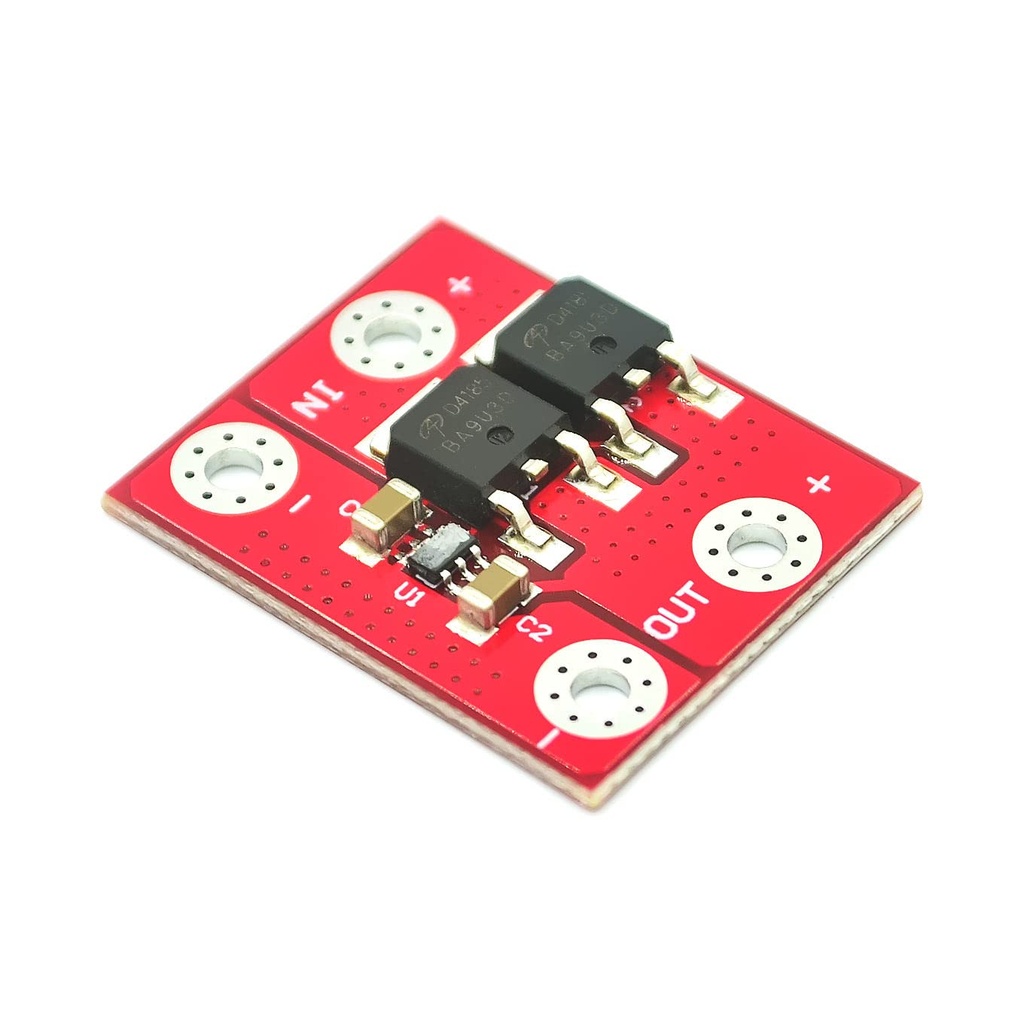

3-28V 15A High Current Ideal Diode Solar Energy Reverse Irrigation Battery Charging Backflow Protection

https://www.satisled.com/web/image/product.template/8481/image_1920?unique=4204919
(0 review)

2.75 2.75 USD 2.75

¥ 20.00

Not Available For Sale

(2.75 / Unit(s))

    This combination does not exist.


    Categories :
    Step Up Boost Module
    SKU :
    23111417
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Ideal diode controller with reverse input protection

    Take out diode - Solar anti backflow and charging backflow protection

    Low forward voltage diode function. Compared with Schottky diodes, this can provide a lower loss path, and in high-power applications, it can provide a more efficient solution and save valuable circuit board space by reducing the demand for heat dissipation. When on, the voltage drop across the MOSFET is usually 20 mV.

    Wide power supply working range supports the use of 1 to 6 series connected lithium-ion batteries to provide working power. Low quiescent current (typical value 11 μ A) Independent of the load current. The gate driver includes an internal voltage clamp for MOSFET protection.

    The input and output are equivalent to diodes. When the output voltage is detected to be greater than the input, the output is immediately turned off, and the detection value is at the millivolt level.

    The corresponding speed is very fast.

    Purpose: it is an ideal choice for replacing ordinary high current diodes and parallel connection of solar panels,

    Suitable for charging back filling protection

    Working voltage: 3-28v

    Working current: operating current 15A

    Circuit board size: 23 * 28mm

    Application:

    • replace power Schottky diodes

    • low quiescent current: 11 μ A

    • 3V to 28V AC / DC adapter voltage range

    • 2.5V to 28V battery voltage range

    • operating temperature range from - 40oC to 125oC
