DSO FNIRSI-138 0-200KHz Bandwidth 1MS Sampling RateHandheld Mini Digital Oscilloscope DIY Kit

Description:

This DSO138 digital oscilloscope kit adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen. It's easy and reliable for circuit operation. It can display frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.

Features:

• TFT controller recognition function.

• Available rising or falling edge trigger.

• Observable previous trigger waveform (negative delay).

• Can freeze at any time waveform display (HOLD function).

• Comes 1Hz /3.3V square wave test signal source.

• Adjustable vertical displacement, and with instructions.

• With automatic, regular and one-shot modes, easy to capture the moment waveform.

• With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.

• Waveform storage function: will not lose the waveform after power off.

• Short-circuit and open-circuit detection: can help the user find out the soldering error.

• Can be secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.

Parameters:

• Maximum Real-time Sampling Rate: 1Msps

• Accuracy: 12Bit

• Sampling Buffer Depth: 1024 bytes

• Analog Bandwidth: 0-200KHz

• Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner)

• Input Impedance: 1MΩ

• Maximum Input Voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)

• Coupling Modes: DC / AC / GND

• The Horizontal Time Base Range: 10μs / Div - 50s / Div (1-2-5 progressive manner)

• Supply Voltage: DC 9V

• PCB Size: 117 * 76mm / 4.6 * 3in

• Screen Size: 52 * 40mm / 2 * 1.57in

• Package Size: 18 * 12.5 * 3cm / 7.08 * 4.92 * 1.18in

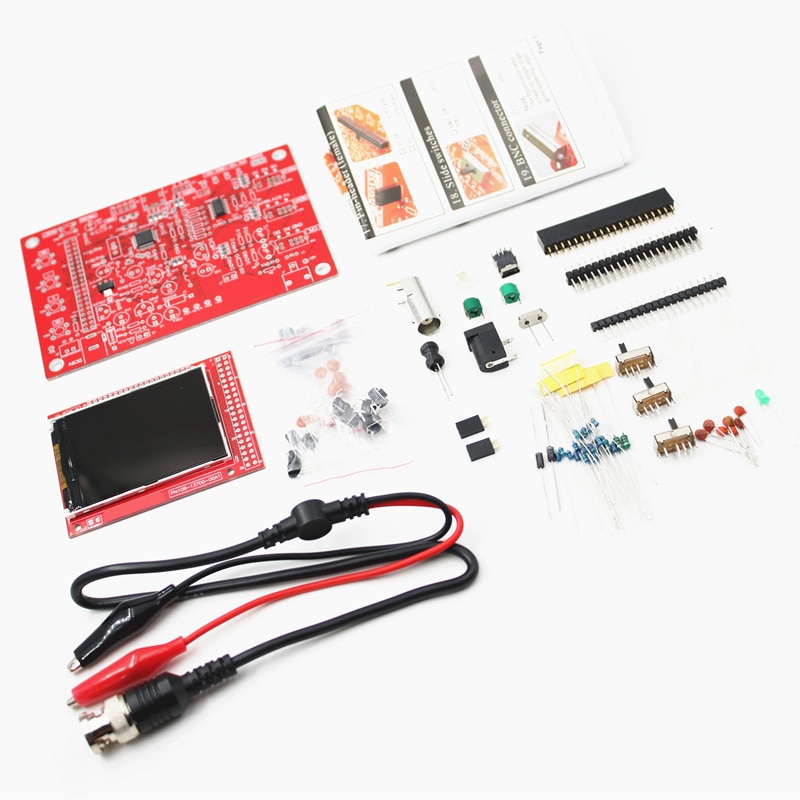

Package List:

• 1 * DSO138 Oscilloscope Kit

• 1 * Probe

• 3 * User Manual(English)

Note: This DIY kit is not soldered yet!
