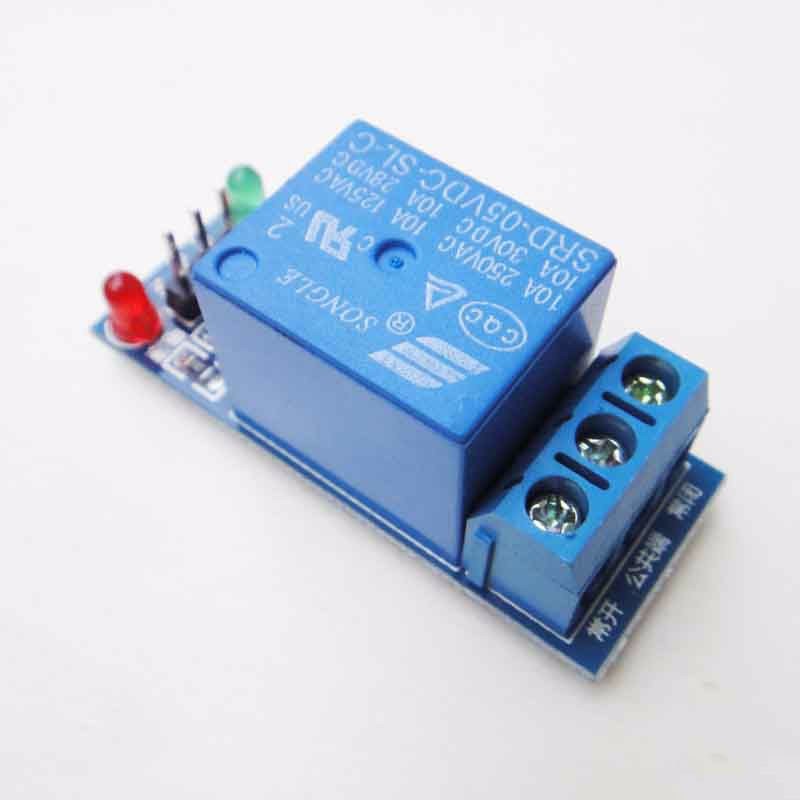

5V 12V 1 Road Relay Module Low Level High Level Trigger Extension Board

https://www.satistronics.com/web/image/product.template/1233/image_1920?unique=d27fcb4
(0 review)

$ 0.54 0.54 USD $ 0.54

¥ 2.63

Not Available For Sale

  • Voltage
  • Trigger Mode

This combination does not exist.

Contact Us
Categories :
Relay Modules
SKU :
181078
Share :
Terms and Conditions :
100% original guarantee
Return within 30days
Worldwide Fast delivery
You may also like
ESP8266 220V Wifi Relay Module Switch Remote Control Smart Home
ESP8266 220V Wifi Relay Module Switch Remote Control Smart Home
$ 9.27 $ 9.27
XD-202 1 Road Relay Control Isolation Appliance Integrated Circuits Module with Optocoupler
XD-202 1 Road Relay Control Isolation Appliance Integrated Circuits Module with Optocoupler
$ 0.74 $ 0.74
K70 5V 1 Channel Low Level Trigger Expansion Board Relay Module
K70 5V 1 Channel Low Level Trigger Expansion Board Relay Module
$ 0.74 $ 0.74
2 Channel Relay Module Control Board with Optocoupler 5V 12V
2 Channel Relay Module Control Board with Optocoupler 5V 12V
$ 0.86 $ 0.86
24V-380V 40A 250V SSR-40 DA Solid State Relay Module 3-32V DC To AC
24V-380V 40A 250V SSR-40 DA Solid State Relay Module 3-32V DC To AC
$ 5.17 $ 5.17
8 Channel Relay Module 5V 12V PLC Control Panel Low Level Trigger for Arduino
8 Channel Relay Module 5V 12V PLC Control Panel Low Level Trigger for Arduino
$ 3.51 $ 3.51

Parameters:

  • Size: 43x17x18.5mm

  • Wiring mode: VCC connected to the power positive electrode (5V),GND connect to Power cathode,IN connected signal terminal

  • Work voltage: 5V 12V

  • Quiescent current: 4mA

  • Operating current: 65mA

  • Trigger voltage: 0-2V

  • Trigger current: 2mA

  • Contact capacity: 250V10A (AC) or 30V30A (DC)

​
