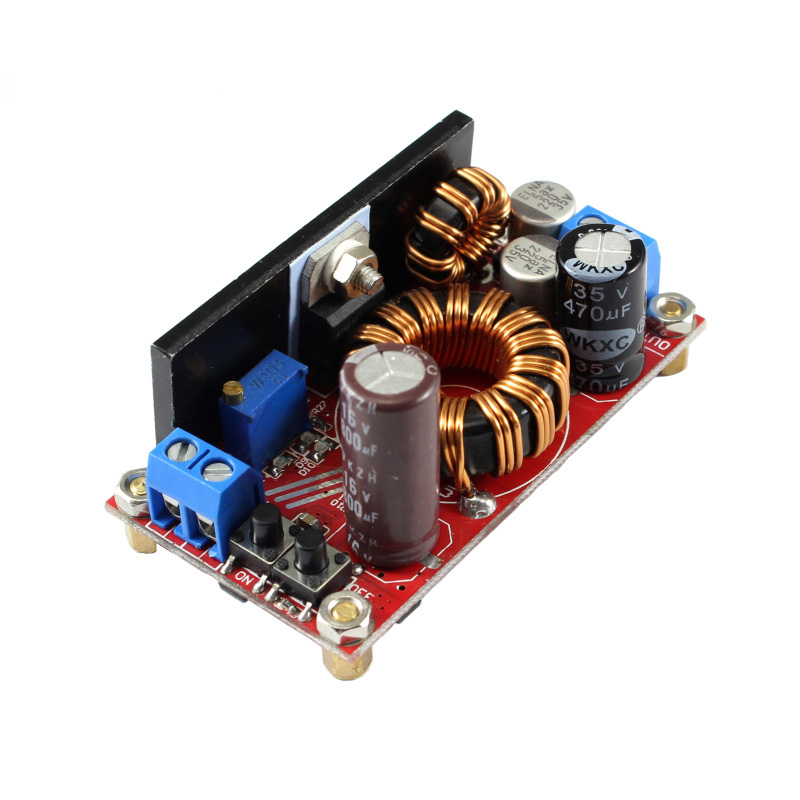

DC-DC Converter 100W 12V to 20V Step Up Power Supply Module QS-1220-100W

https://www.satisled.com/web/image/product.template/6723/image_1920?unique=91b8cb5
(0 review)

16.51 16.51 USD 16.51

¥ 120.00

Not Available For Sale


    This combination does not exist.


    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Brand: QSKJ

    Model:   QS-1220-100W

    Parameters:

    • Module Properties: Non-isolated step-up module(BOOST)
    • Input Voltage:9-16V
    • Output Voltage:10-32V(adjustable)
    • Output Power: Natural cooling 100W (MAX), 120W(<1 minute)
    • Conversion efficiency:95%(input 16V output 19V 2.5A test,for reference only)
    • Switch frequency:100KHz
    • Output Ripple:25mV(MAX)
    • Bandwidth:20M
    • Operating Temperature: Industrial (-40° C  to +85° C ) (85° C  output power within 40W)
    • Full load temperature rise: 40° C
    • No-load current: 20mA typical
    • The Current after turn off: 1mA typical(if not calculate LED power,current is 0A)
    • Load regulation:±0.5%
    • Voltage regulation: ±0.5%
    • Dynamic response speed: 5% 200uS
    • Short circuit protection:Yes.Can auto turn off.(after output short circuit,please make sure that the output is not short circuit before turn on),The short circuit protection is a remedy measure for wrong operation, Please do not deliberately short-circuited.
    • Input voltage over warning: When input voltage over than 16.5V,red LED is light.(input voltage can not higher than 18V)
    • Input Reverse Polarity Protection: wrong input voltage connection red LED will turn light,right input connection the blue LED is light.
    • Switching method: remark "ON" is turn on, the other one is turn off.(when output no-load shutdown,please press turn off key until blue LED is turn off light,it is a few seconds)
    • Wiring:No welding, with connection ports.
    • Size:65(L)*35(W)*23.5(H) mm

    Applications:

    • DIY an output adjustable vehicle power supply,connect the 12V input, and output could be 10-32V(adjustable by yourself), However, the output voltage can not be less than the input voltage.
    • DIY a Car laptop power supply.connected to 12V power supply, adjust the output voltage to the value that your notebook need.
    • Boost charger. You can use the 12V power supply to charge battery higher than 12V, for example, 24V battery.
    • Power supply for your electronic equipment.
